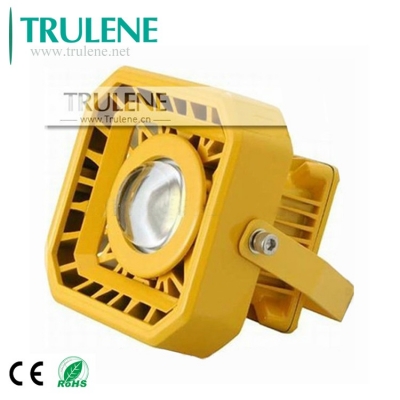

High Power Waterproof IP67 high lumen 10W 20W 30W 40W 50W Led WF2 Explosion Proof led flood light

High Power Waterproof IP67 high lumen 10W 20W 30W 40W 50W Led WF2 Explosion Proof led flood light

Item No : TOL-N1-EPL05-50W
Material : Aluminum
Size : 200×200×202 mm
NAMECONTENT
BrandTRULENE
Item Typeexplosion proof light
ModelTOL-N1-EPL01-30W
Item Description

High Power Waterproof IP67 Led Explosion Proof light

1.10-35W led explosion proof light
2. explosion proof grade:ExdIIBT5
3.IP67
4.hazardous area light ,explosion-proof light

Lamp Body MaterialAluminum + Alloy
Lamp Luminous Flux2400lm
Size200×200×202 mm
Lamp Luminous Efficiency>80lm/W
CRI (Ra>)>70
power factor >0.9

Total Harmonic Current

<15%
Power frequency

50Hz(applied for 47-63 Hz)

Input Voltage220V AC(applied for 95-265V)/ 24V DC
lamps Efficiency>0.91
Working Temperature)-40 - +60°C
Junction Temperature(TJ))<65°C
Ambient EnvironmentTemperature: -40°C—60°C; Humidity: 10-90%RH (25°C)
Life span >50000
IP RatingIP67
Cable EntryΦ8~Φ14mm
Threaded FittingG3/4"
Installation Height2~6m (flood light)/8~20m (project light)
LED ChipCOB Bridgelux
WATT20W/30W/40W/50W
Beam angel45°/60°/90°/120°/140°
LED color temperature

2700-6500K

Explosion-proof Grade

Ex d  II B T6

Corrosion-proof Grade

 WF2

 N.W

 4 kg

Certification

CE, EMC, UL

ApplicationApplied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone Hazardous Locations, Zone 20, Zone 21, Zone 22 and  A,  B,  C explosive gas atmosphere.
Features1.Patented design for heat dissipation to ensure life of light source up to 50,000 hours.

2.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.

3.Die casting aluminum housing, with anti-static and anti-corrosion coating,high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of bulletproof PC which is thermal resistance,corrosion resistance, high light transmission.

4.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.

5.Beautiful appearance, several types of installation methods available.

MOQ20 Piece/Pieces sample is offered
Loading Port

Shenzhen or Guangzhou

Lead Time

10-20 days  Days after deposit is received

Warranty

3 years

Place of Origin

GuangDong, China



TAG:   Led flood light flood light

High Power Waterproof IP67 high lumen 10W 20W 30W 40W 50W Led WF2 Explosion Proof led flood light

1.Power:40W / 50W
2.Explosion proof grade:Ex d II CT6

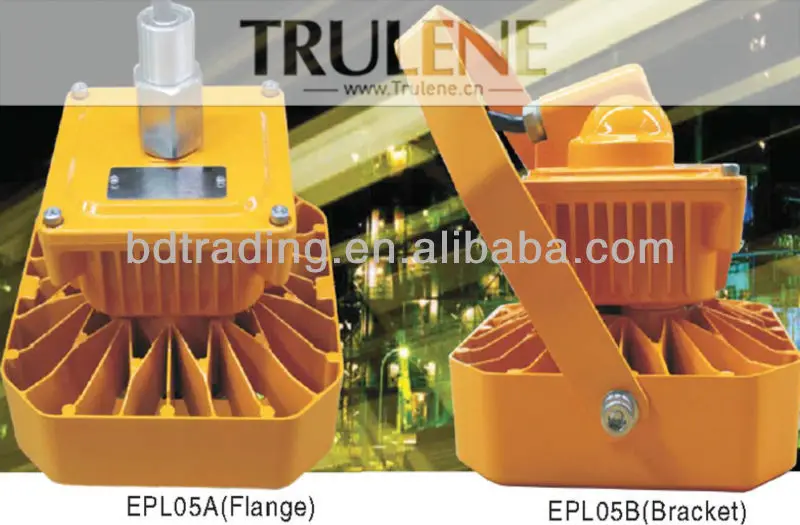

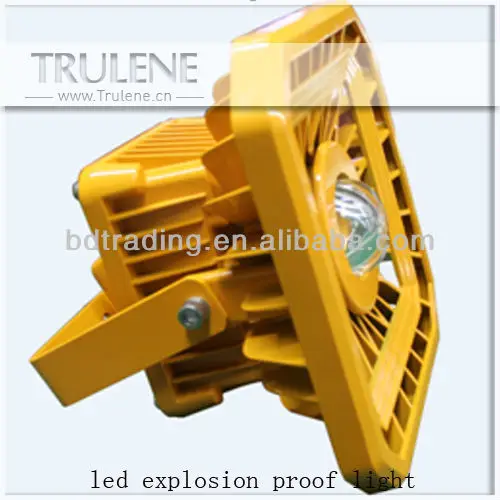

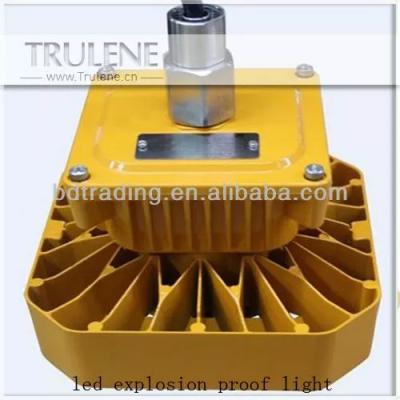

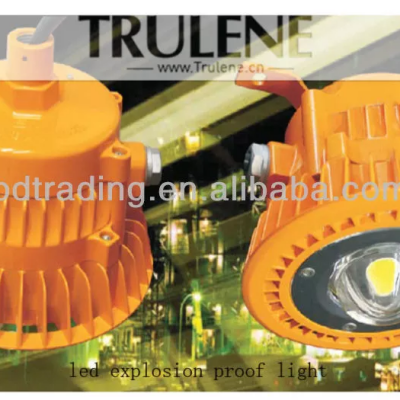

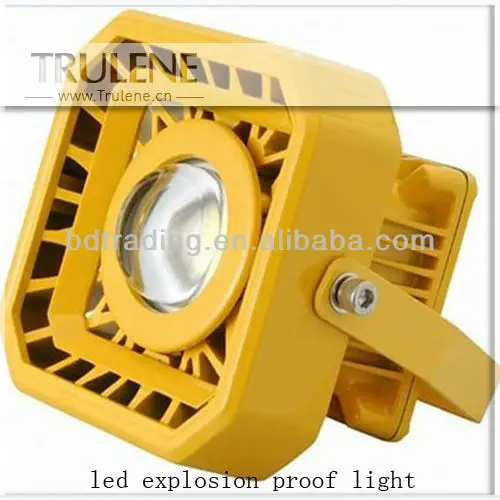

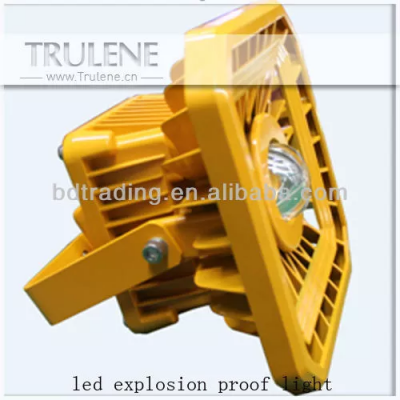

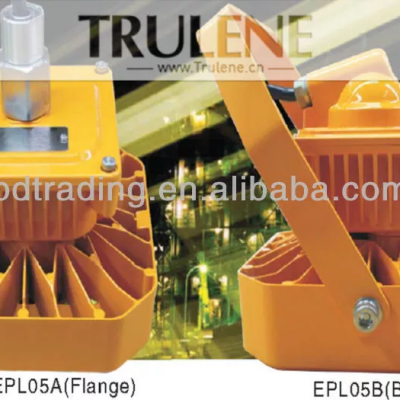

Detail Picture of explosion proof led flood light
